In the highly competitive automotive components sector, interior and functional parts must deliver both mechanical reliability and flawless visual appeal. For critical assemblies like automotive adjusters, balancing these requirements relies entirely on tooling precision and process stability.

As a premier china mold manufacturer and trusted mold maker china, we specialize in turning challenging designs into production-ready realities. Here is how our engineering team solved a complex tooling challenge for a demanding automotive interior component.

1. The Engineering Challenge: Stringent Cosmetic & Tolerancing Standards

Our team was tasked with developing a high-precision tool for an automotive adjuster with the following strict parameters:

• Material: PP+EPDM-TD20 composite.
• Dimensions: 161 x 203 x 28 mm with a 2.5 mm nominal wall thickness.
• Surface Requirements: A delicate, highly uniform textured cosmetic surface (A-surface) that must remain completely free of sink marks, weld lines, or stress marks, despite the presence of numerous internal structural ribs.
• Parting Line & Flash Limits: A maximum permissible flash tolerance of 0.03 mm.
  For traditional plastic mould manufacturers in china, achieving a virtually seamless parting line on a filled PP composite is incredibly difficult due to material viscosity and shrinkage behaviors.


  2. Specialized Tooling Solutions

  To guarantee a defect-free surface and secure a smooth production run, the engineering team at our china mold factory executed a targeted design and manufacturing strategy:

• Rib Geometry Optimization: To prevent the thick internal structural ribs from causing sink or stress marks on the visible textured surface, we modified the rib-to-wall thickness ratio. By optimizing the internal rib thickness to precisely 1/3 of the main wall thickness during the DFM phase, we successfully balanced plastic shrinkage stress.
• Ultra-Precision CNC Machining: Controlling flash to within 0.03 mm requires exceptional tooling tolerances. We utilized high-speed CNC machining for the final finishing of the core and cavity inserts. Combined with on-machine automatic coordinate inspections, we maintained machining tolerances under 0.01 mm, keeping parting line step differences safely below the 0.03 mm

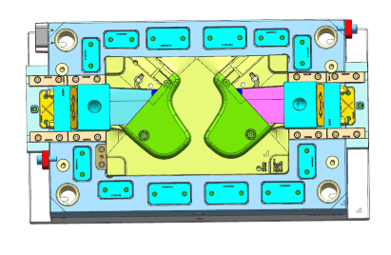

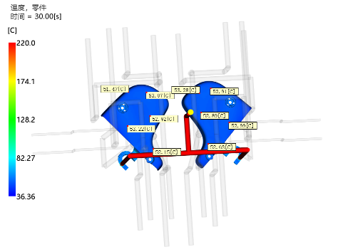

• limit.Advanced Mold Flow Simulation: Prior to steel cutting, we conducted detailed mold flow analyses to simulate the behavior of the PP+EPDM-TD20 material in the 1+1 cavity layout. Optimizing gate locations and the runner system ensured balanced melt delivery and consistent cavity temperatures, eliminating the risk of cosmetic color variance or visible weld lines.



  3. Outstanding Results: Approved at T1

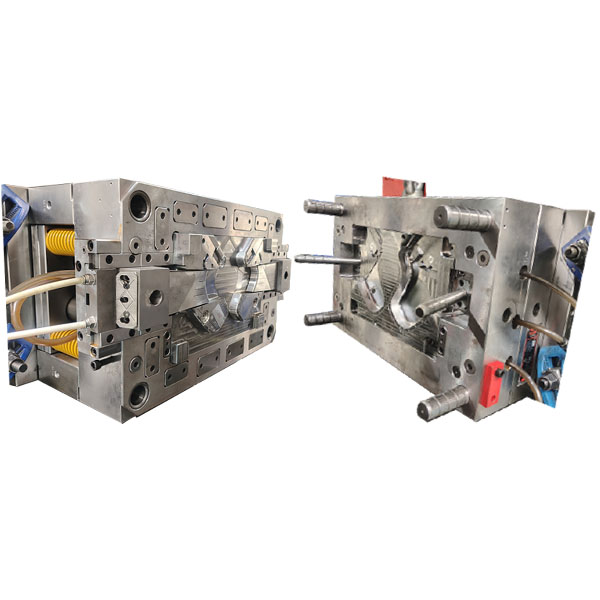

     Thanks to our precise engineering approach, the tool achieved T1 trial approval and transitioned seamlessly into mass production. The client expressed complete satisfaction with both the surface finish and the dimensional repeatability of the molded adjusters.

Whether you require complex car bumper molds (engineered for 2026 vehicle standards) or highly intricate functional interior components, partnering with a premier mold manufacturer in china ensures your project is delivered on time and within specification.
