2K Automotive Dashboard Bracket Mold

Optimizing Mechanism Relocation and Preventing Interference for a Multi-Undercut Dual-Color (2K) Automotive Dashboard Bracket Mold

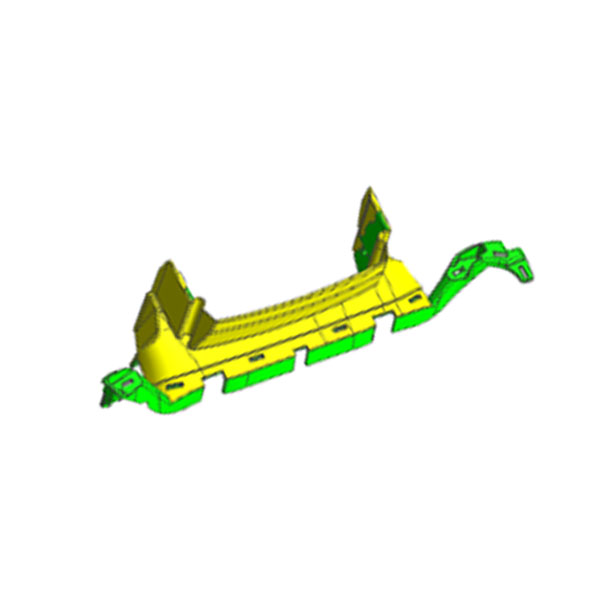

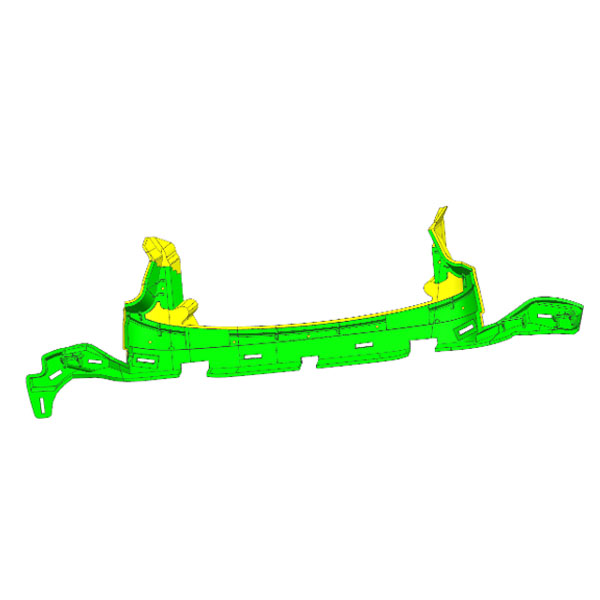

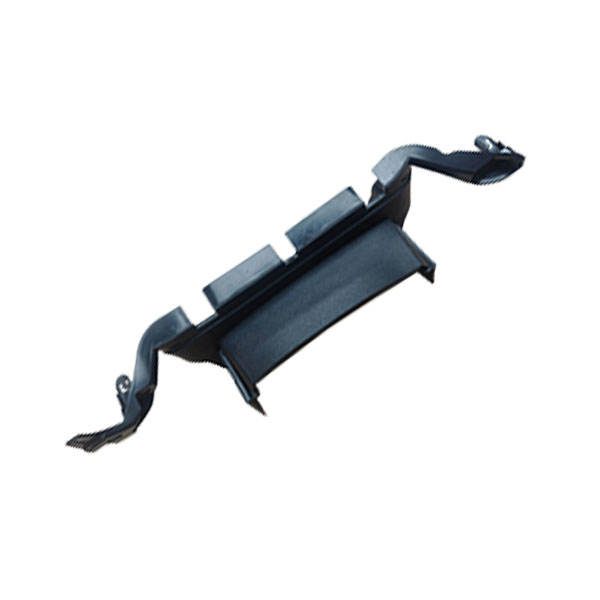

For global Tier-1 automotive interior and structural suppliers, manufacturing aesthetic dual-color (2K) multi-material components with dense internal features represents a rigorous manufacturing bottleneck. As an elite vendor in plastic mold china, our tooling division has successfully engineered a sophisticated two-shot injection tool for an automotive dashboard bracket covering component (PC+ABS + TPS, 106 * 365 * 106mm). Featuring a tight cluster of internal undercuts and multiple required side action vectors, this china automotive mould utilizes an engineered slide relocation methodology to resolve multi-stage kinematic conflict, achieving direct mass-production buy-off at its T2 trial phase.

1. Tooling Challenges: Kinematic Interference and Sealing Failures in Complex 2K Shot Transitions

Automotive dashboard components demand seamless material interfaces and pristine surface cosmetics, free from weld lines or flash. For a structural trim part using a rigid substrate (PC+ABS) encapsulated with a soft elastomeric overmold (TPS), the primary engineering barrier is geometric constraint. Because the rigid component is indexed into the second cavity, its numerous pre-formed internal undercuts and external features are highly susceptible to physical interference with the secondary shot’s steel core and slide actions.

Standard single-plane mechanical slides operating on the stationary side (cavity side) face massive structural clearance restrictions during tool rotation or index cycles. If slide positioning fails to clear the substrate during core movement, catastrophic mechanical collisions, tool galling, or severe shear stress tearing along the dual-material bond line will occur. Balancing dynamic dimensional profiles, preventing flash at the flexible TPS borders, and fitting multi-directional side-action sliders within a compact tool frame remain critical sector challenges for high precision mold builders.

2. Technical Solutions: Predictive Rheology and Engineered Moving-Side Slide Relocation

To secure flawless structural bonding and maintain our reputation as a premier china mold manufacturer, our engineering division introduced a highly specialized technical framework:

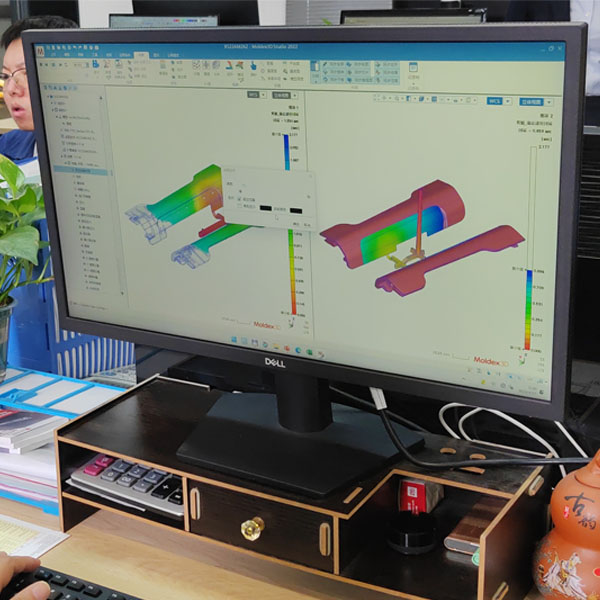

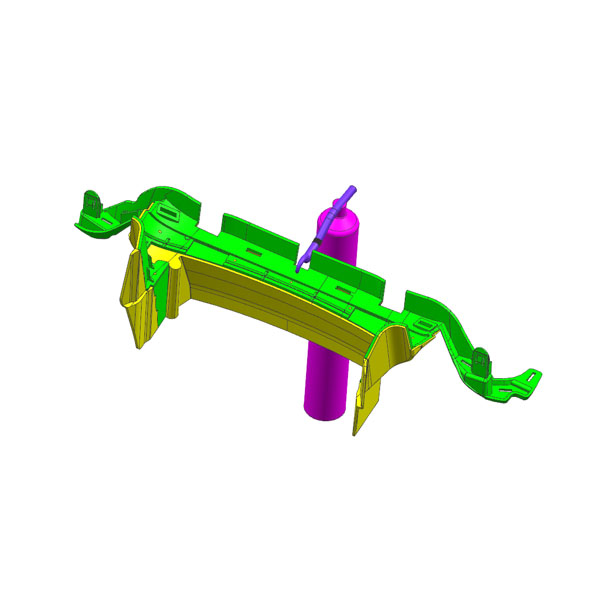

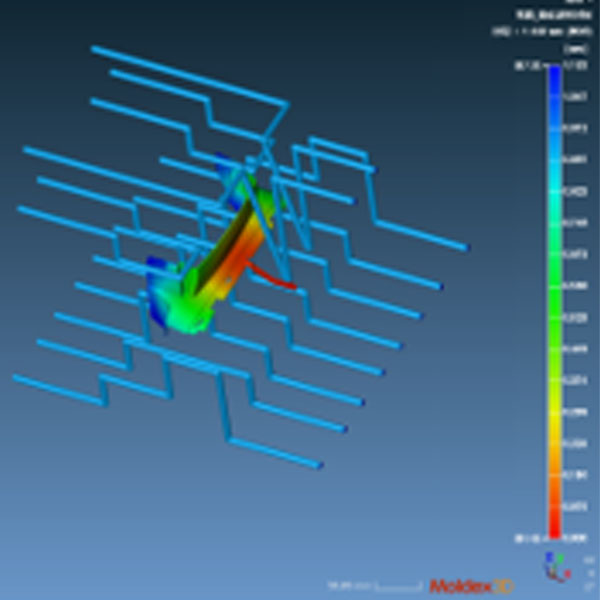

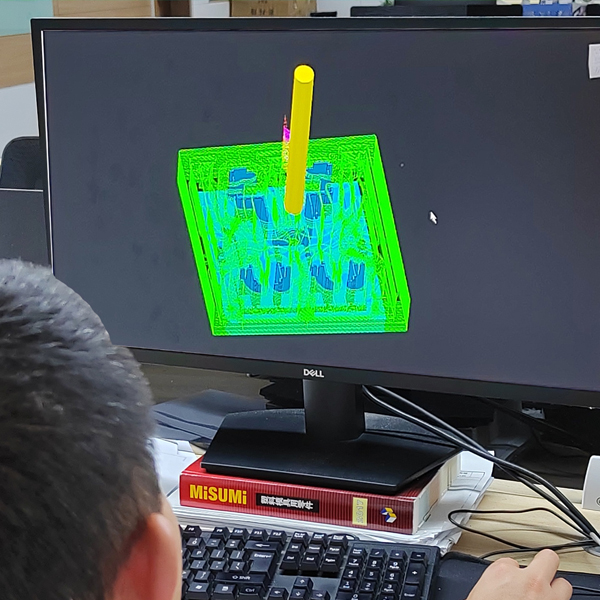

Simulated Interface Bonding and Thermal Profile Mapping: Prior to block machining, advanced multi-component Moldflow analytics simulated the thermodynamic behavior of the secondary TPS melt as it overmolded the solidified PC+ABS substrate. By adjusting valve-gate sequence timings, we preserved exact localized melt temperatures at the overmold boundary. This neutralized internal volumetric shrinkage variances, optimized interfacial cross-linking, and produced crisp, flash-free sealing lines.

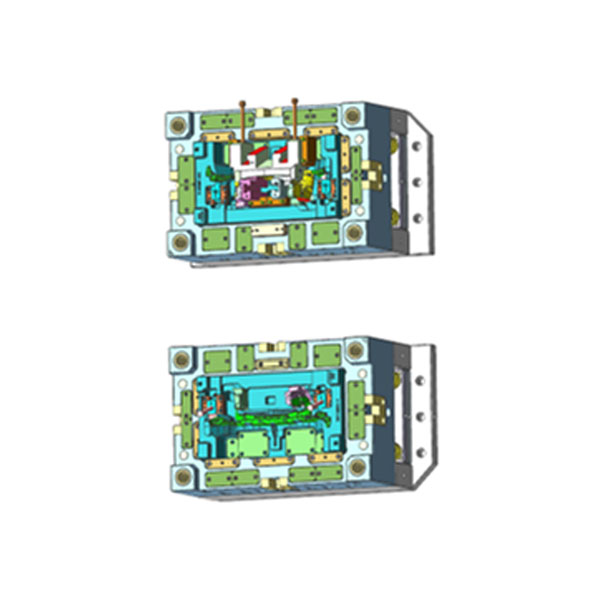

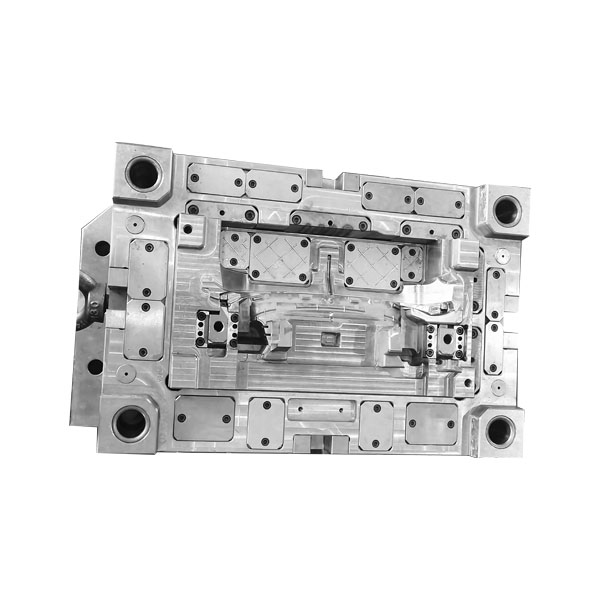

Innovative Slide-Relocation Mechanism (“Front-to-Moving Mold” Relocation)：To bypass the spatial constraints and prevent collisions between the slider mechanics and the dual-shot tooling steel, we engineered an innovative “front-to-moving mold” structural scheme. The side-action slide mechanisms—conventionally constrained to the static cavity side—were successfully relocated and integrated into the moving core side. Operating via synchronized heavy-duty hydraulic cylinders and mechanical cam links, these slides actuate and retract in precise harmony with the core’s rotation and plate ejection stroke. This architectural layout cleared the static space, eliminated collision vectors during indexing, and provided continuous, rigid support for the dense undercuts over long-term high-velocity runs.

3. Why Global Automotive Tier-1 OEMs Partner with Us

We distinguish our operations in the global best mold maker in china sector by marrying advanced mechanical engineering with tight manufacturing tolerances:

Risk Resolution via Kinetic Simulation: We replace field guesswork with robust digital verification. Every multi-material project undergoes comprehensive 3D kinematic verification to dynamically analyze tool rotation clearances and slider stroke pathways, ensuring zero interference before machining begins.

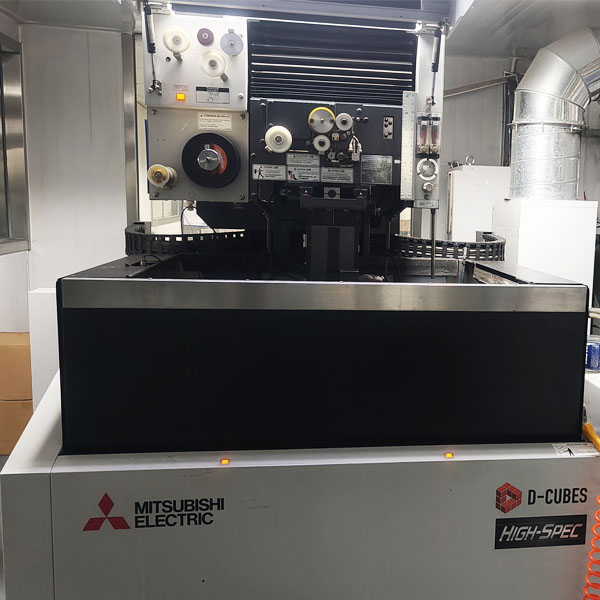

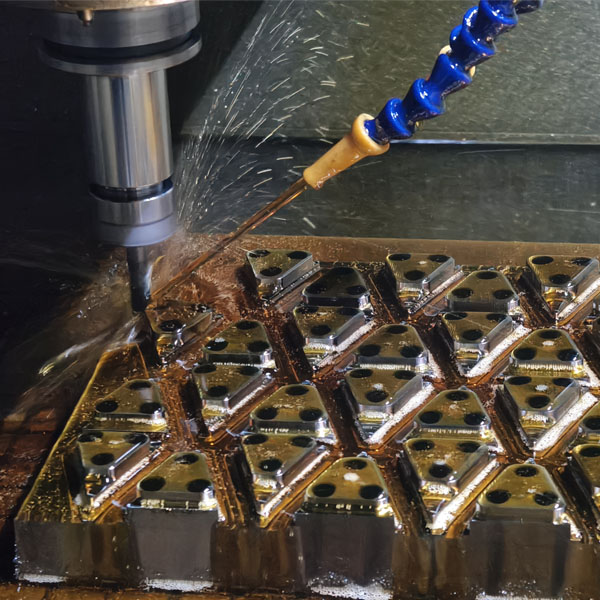

Sub-Micron Machining for Flawless Overmold Sealing: To eliminate flashing at soft-material interfaces, our multi-axis CNC centers and coordinate measuring machines ensure parting line matching tolerances within ±0.005mm, ensuring sharp shut-offs for premium tactile finishes.
Accelerated Time-to-Market with T2 Direct Validation: Automotive launch schedules are unyielding. Thanks to optimized mechanism designs and exacting manufacturing, this complex dual-shot mold cleared all cosmetic, bonding, and laser-scanning audits at its T2 trial phase, gaining immediate sign-off for global production transfer.

4. Operational Validation and Outcomes

The verified dashboard brackets demonstrated high bond strength between the substrate and elastomer, uniform material thickness, and perfect dimensional replication. By validating this high-tier tool within a compressed T2 window, we demonstrated the technical engineering capability required of a premium china mold manufacturer, solidifying long-term strategic programs for our client’s global vehicle platforms.
