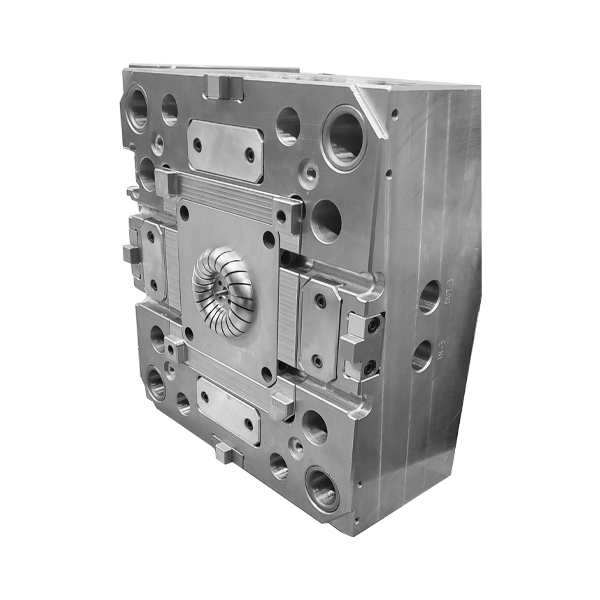

For international manufacturers of industrial burners, HVAC systems, and precision motors, producing high-speed plastic impellers with strict dynamic balance limits is a major engineering hurdle. As a premier china mold manufacturer and mold factory china specializing in high precision mold fabrication, our technical team engineered an advanced single-cavity injection tool for a PPS+GF40 combustion blower wheel (φ84*17mm), securing strict dynamic runout within and achieving full production sign-off at its T3 trial run.

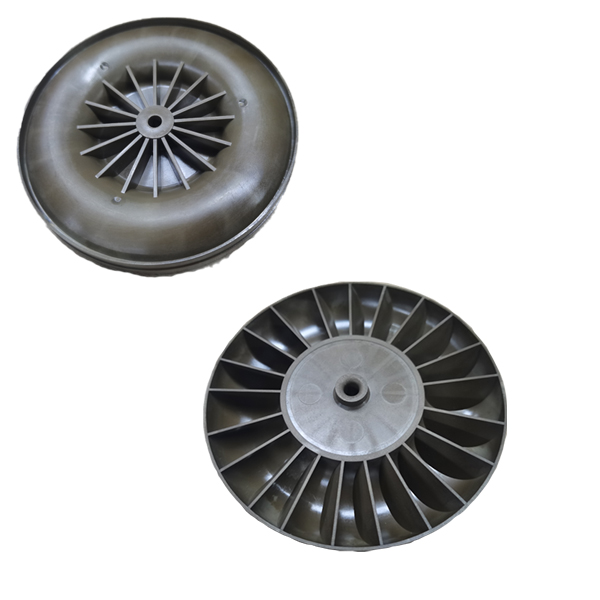

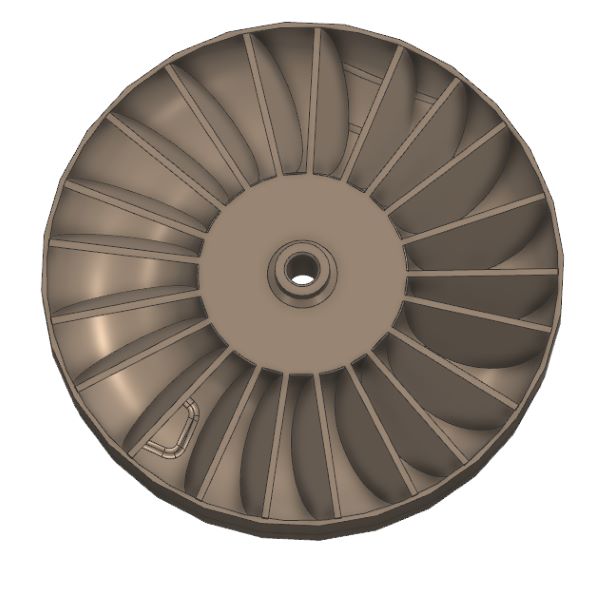

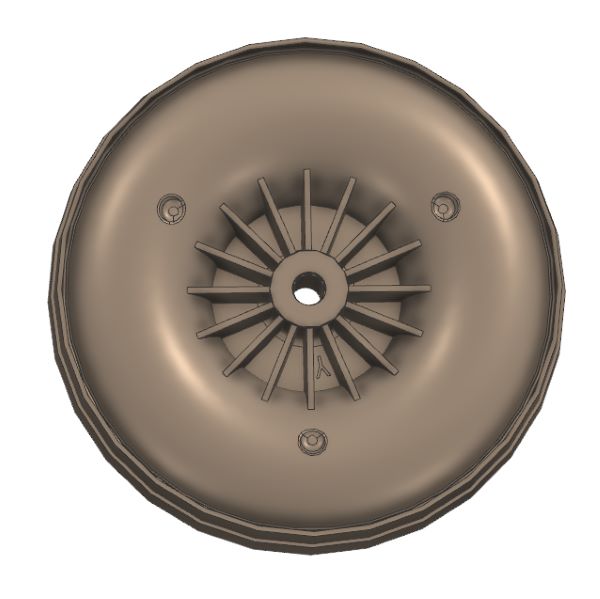

The combustion impeller features inclined functional ribs on the rear side and specifies 40% glass-fiber reinforced Polyphenylene Sulfide (PPS+GF40).
Because PPS+GF40 is a highly crystalline resin subject to rapid thermal solidification and anisotropic fiber orientation shrinkage, conventional gating layout leads to asymmetrical volumetric packing. This localized density variance shifts the part’s mass center away from its rotational axis. During high-RPM operation, a dynamic balance deviation exceeding $0.1\text{ mm}$ generates unacceptable vibration, acoustic noise, and premature bearing fatigue.
To eliminate density imbalance and affirm our standing as the best mold maker in china, our engineering team executed a comprehensive thermal and dimensional containment strategy:

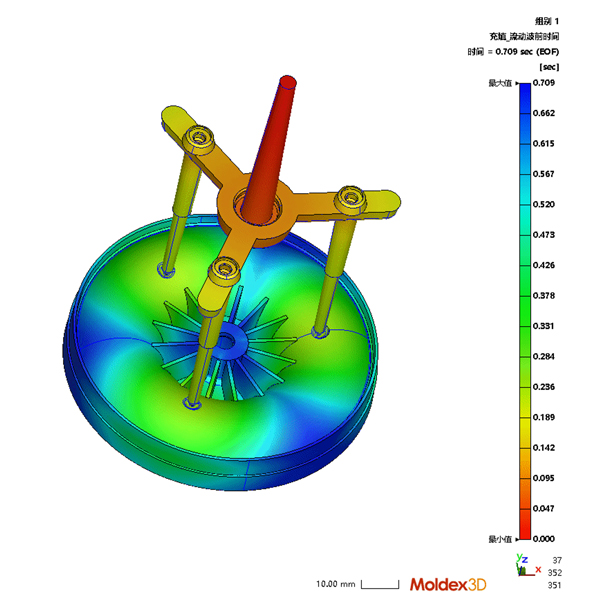

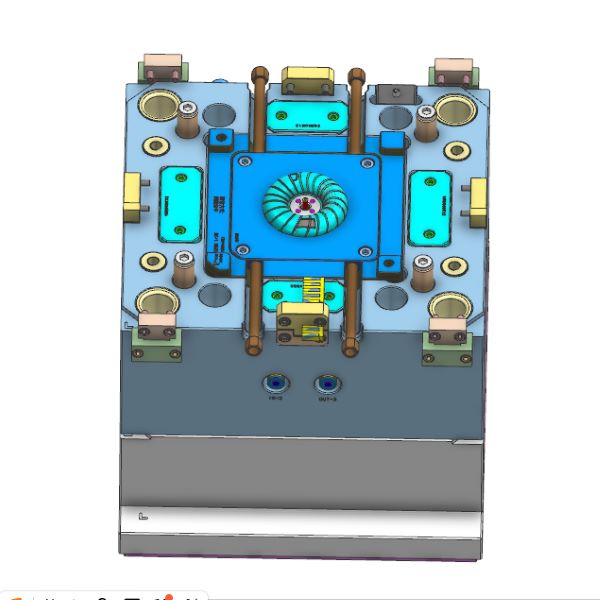

Symmetric Gate Placement via Advanced Moldflow Analysis: Prior to steel cutting, rigorous moldflow simulation was conducted to evaluate melt front velocity and fiber alignment across the rear inclined ribs. We determined the exact geometric center gate location and applied micro-tolerance machining ($\pm 0.002\text{ mm}$) during gate wire-EDM execution. This ensures 360-degree symmetrical filling and uniform packing density throughout the cavity.

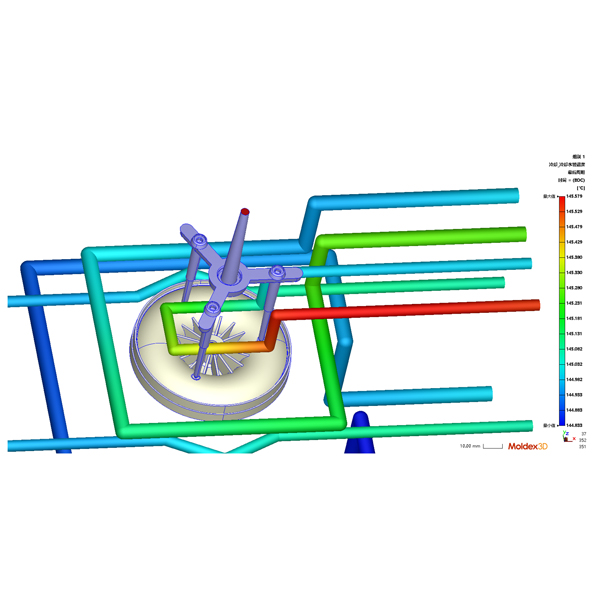

3D Uniform Isothermal Water Circuitry: PPS crystallization is highly dependent on continuous, uniform mold surface temperatures. We integrated an optimized 3D conformal cooling network across the cavity and core inserts, maintaining an active, uniform mold temperature profile. This neutralizes localized thermal differentials, preventing irregular volumetric shrinkage.
Micron-Level Cavity Dimension Control: Core and cavity insert pockets were machined under strict micro-tolerances using high-precision CNC and mirror EDM, guaranteeing absolute coaxial alignment between the drive shaft hole and the outer blade perimeter.

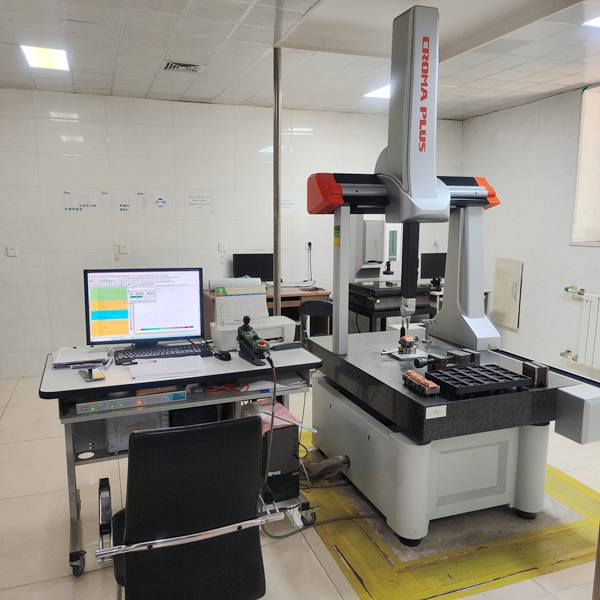

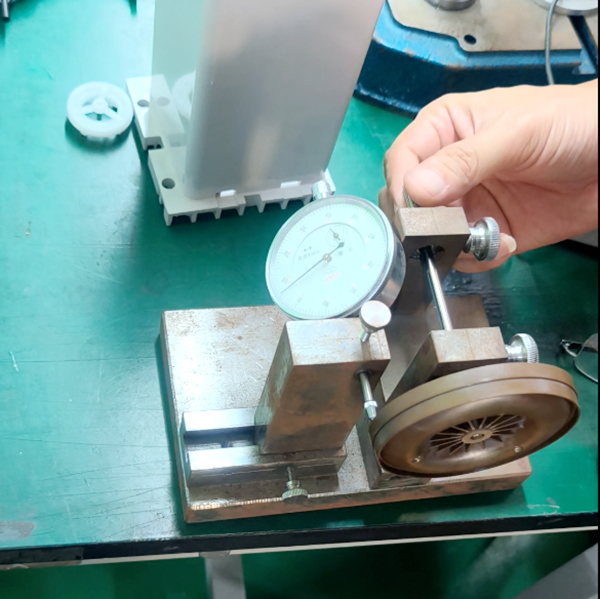

The tooling successfully cleared all functional audits during its T3 trial run. High-speed dynamic balancing inspection confirmed that runout metrics consistently measured 0.1 mm,with zero structural warpage or blade distortion. The tool transitioned directly into continuous high-volume production, satisfying all client quality metrics.
Data-Driven Tooling Architecture: As a trusted china mould company, we rely on rigorous fluid dynamics and thermal modeling to solve rotational balance issues before steel processing.

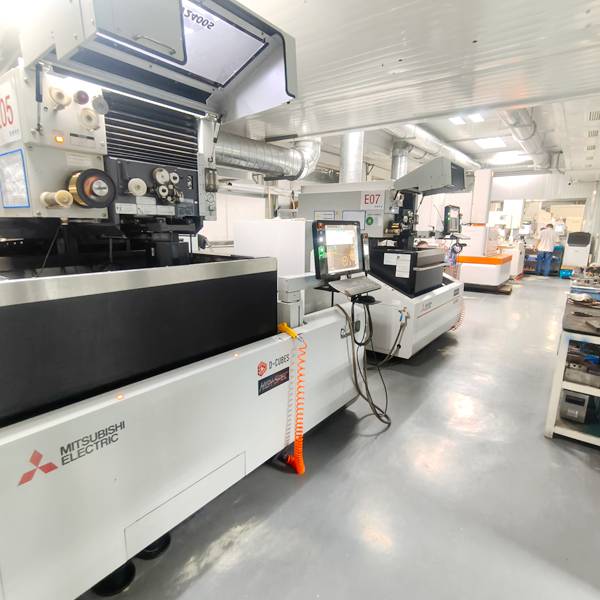

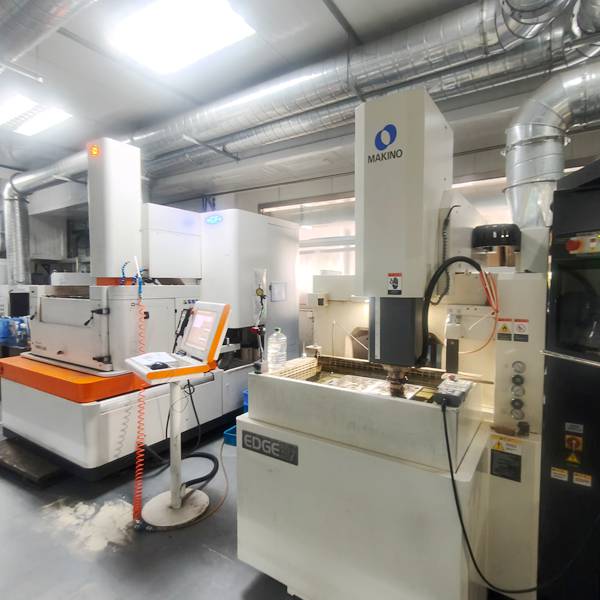

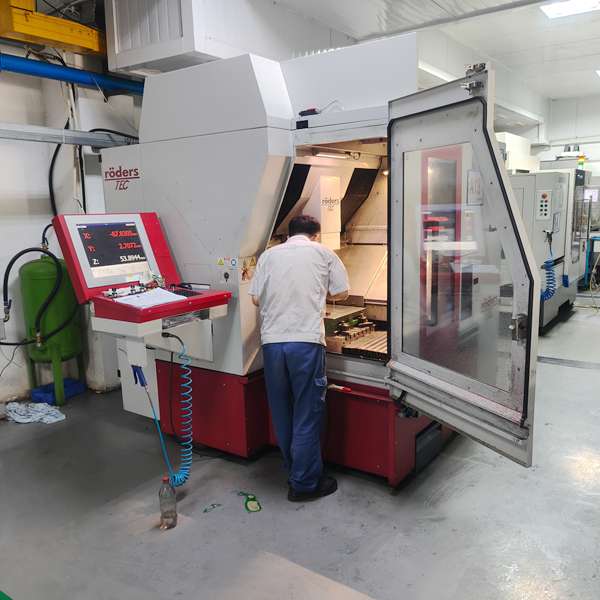

Micron-Precision Toolmaking: Operating as a world-class china mold factory, our facility utilizes mirror EDM and sub-micron grinding equipment to maintain exceptional concentricity and mold surface integrity.
Accelerated Qualification Timelines: By delivering compliant dynamic balance performance at T3, we helped our partner reduce testing cycles and achieve fast market deployment.
