In today's automotive plastic injection molding industry, the trend towards larger, lighter, and more precise components is irreversible. For large, structurally complex functional parts like automotive seat back brackets, achieving strict dimensional tolerance control while ensuring structural integrity is a core challenge facing every professional china mold manufacturer. Today, we share a success story of how our leading china mold company perfectly solved the profile tolerance challenge for a large, glass-fiber-reinforced plastic part through forward-thinking design and exquisite craftsmanship.

The project we undertook was a large backrest bracket for an automobile seat, with dimensions of 478mm x 523mm x 195mm. The core difficulties of this product were:

Strict Profile Tolerance: The part is characterized by irregular, complex curved surfaces, with a required profile tolerance of +/-1mm. For a component of this size, this is an extremely challenging precision target.
High-Challenge Material: The product is made from PP+GF30 (Polypropylene with 30% glass fiber). During the injection molding process, the orientation of the glass fibers and non-uniform shrinkage of this material lead to severe warpage and deformation, making it a natural enemy of dimensional control.
Complex Structure: The part is large overall with a significant hollowed-out section in the middle, which further exacerbates the risk of uneven stress and deformation.
Faced with a project that combined "large size," "high precision," and a "difficult-to-process material," conventional approaches from many plastic mould manufacturers in china were clearly inadequate.

As a seasoned mold maker china, we understand that the key to solving such problems is prevention, not correction. The core of our strategy was to leverage advanced engineering analysis and innovative mold design to eliminate deformation issues from the outset.

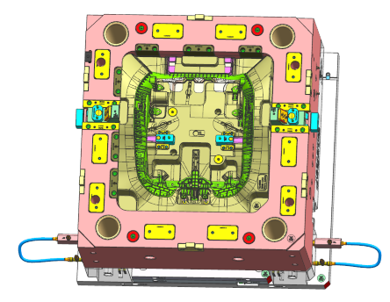

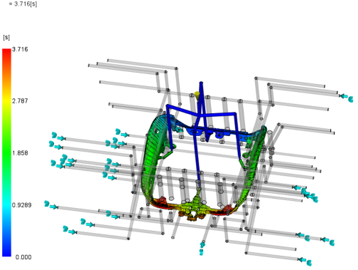

Precise Prediction: In-depth Mold Flow Analysis
Before commencing the design for the mold in china, our engineering team conducted a thorough mold flow analysis on the product. This was more than a routine filling simulation; we focused on:
Gate Location Optimization: Through iterative simulations, we identified the optimal gate locations and number to ensure the molten plastic filled the cavity in the most balanced manner, fundamentally reducing internal stress caused by inconsistent molecular orientation.
Warpage Trend Prediction: The analysis software accurately predicted the direction and magnitude of warpage after cooling, providing invaluable data to support our subsequent mold optimization.
Innovative Design: An Ingenious Mold Temperature Control System
Based on the predictions from the mold flow analysis, our mold factory china designed an ingenious and highly efficient mold waterway (cooling) system. The cleverness of this system lies not in uniform cooling, but in "differential cooling." By creating independently controlled cooling circuits in different areas of the mold, we could actively introduce subtle temperature differences across the part. This temperature differential effectively counteracted the internal stresses from uneven material shrinkage, acting like an "invisible hand" that guided the part straight during the cooling process. Ultimately, this brought the total deformation well within the +/-1mm tolerance band.

Thanks to our precise upfront analysis and innovative design, this large, high-precision plastic mold china achieved mass production status after only the third trial (T3). All dimensions, especially the critical profile tolerance, were consistently within the required specifications. Our efficiency and quality earned high praise from the client, once again demonstrating our professional expertise as a top-tier mold manufacturer in china.
