In the context of rapid industrial development, the performance requirements for components are becoming increasingly stringent. This is especially true for precision parts like combustion air wheels, which demand extreme dynamic balance during high-speed rotation. We understand that even a tiny deviation of 0.1mm can critically impact the overall equipment performance and lifespan.
Product Challenge: The "Art of Balance" in High-Speed RotationProduct Challenge: The "Art of Balance" in High-Speed Rotation
Our client faced precisely this challenge: manufacturing a combustion air wheel made of PPS+GF40, with dimensions of D84X17mm and a smooth surface. Crucially, it features slanted ribs on the reverse side, and its dynamic balance value must be strictly controlled within 0.1mm during high-speed operation. This implies that every stage, from material selection to mold design and injection molding, allows for no compromise. Furthermore, the single-cavity requirement added to the complexity of process control.
Our Precision Mold Solution: From "Fine" to "Flawless"
Facing this challenge of high dynamic balance and extreme precision, we leveraged our industry-leading precision injection molding technology to provide a comprehensive, end-to-end solution. The core of our approach lies in systematic design and stringent manufacturing control:

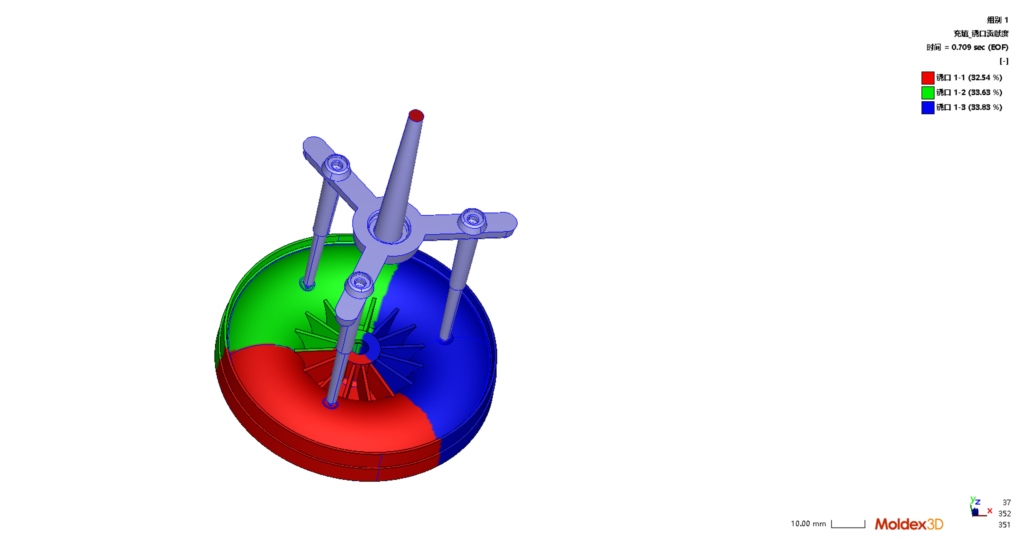

Accurate Mold Flow Analysis: In the initial stages of mold development, we conducted a thorough evaluation of the product using advanced mold flow simulation analysis . This allowed us to precisely predict melt flow behavior and scientifically determine the optimal gate position based on the specific slanted rib structure of the impeller. This ensures uniform filling and minimizes internal material stress, a crucial step for achieving high dynamic balance.
Strict Gate Size Control: During manufacturing, we implemented rigorous tolerance control over the processing of gate dimensions. Precise gate design and size control help stabilize injection pressure and flow rate, preventing excessive shear stress or uneven filling, thereby effectively controlling product deformation and internal stress .

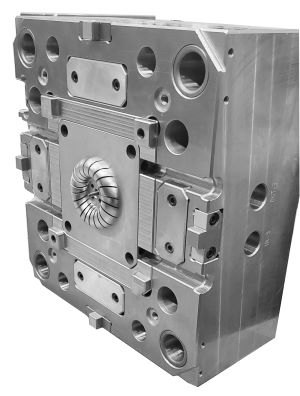

Refined Cavity Dimension Tolerance Control: Critical cavity areas within the mold core underwent stringent dimensional tolerance control, often at the micron level. We utilized high-precision machining equipment and inspection methods to ensure the mold cavity's geometric shape perfectly matched the product design, laying a solid foundation for subsequent dynamic balance requirements .

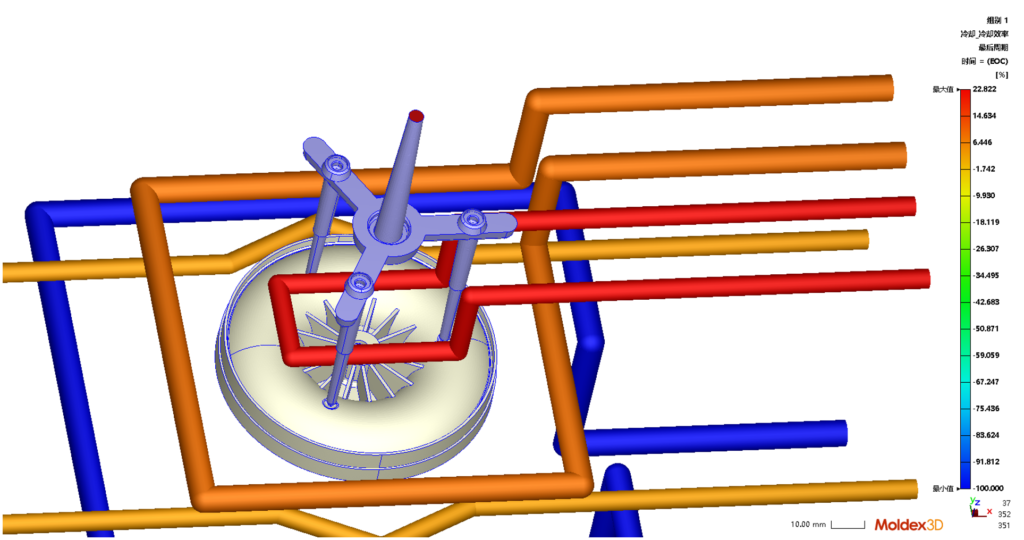

Uniform Cooling Channels & Constant Mold Temperature: We designed an optimized uniform cooling channel layout to ensure the entire mold maintains a constant temperature during the injection process . This is paramount for molding high-performance engineering plastics like PPS+GF40, as it effectively prevents shrinkage differences and warping caused by uneven cooling, further guaranteeing product dimensional stability and dynamic balance accuracy .
Outstanding Results: T3 for Mass Production, Highly Satisfied Customers!
It is precisely this meticulously refined engineering solution that led to the groundbreaking success of our combustion air wheel project. During the T3 trial molding phase, the product already fully met mass production standards and received high recognition and satisfaction from the client . This not only demonstrates our exceptional manufacturing capabilities and quality assurance but also highlights our profound strength as a professional injection mold manufacturer in tackling complex challenges.
