In the modern automotive industry, seat components are pivotal not only for safety and comfort but also for their increasingly complex and precise designs.

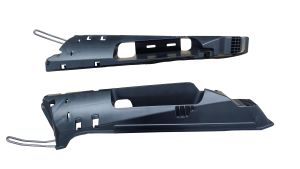

This case study highlights a critical automotive seat structural part that presented significant challenges for mold engineering.
**Material: PP+EPDM-TD20
Dimensions: 697 x 133 x 152mm

Core Challenges:

• Embedded Metal Inserts: The component is to be integrally injection-molded with metal hardware. It is crucial to ensure that the hardware is precisely positioned and does not shift during the injection molding process
• Internal Inclined Undercut: The product contains complex internal inclined undercuts, which pose a severe challenge to the demolding mechanism of the mold
• Strict Weld Line Requirements: As a visible component, the position and appearance of the product's weld line must meet stringent Class-A standards to avoid any visual defects

Our Solution

Facing these multifaceted technical barriers, our engineering team delivered a comprehensive one-stop solution, from design analysis to precision manufacturing, ensuring every challenge was perfectly addressed

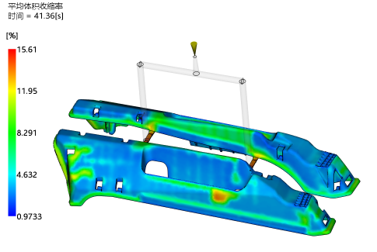

1. Predictive Analysis for Aesthetic Perfection: In the initial design phase, we leveraged advanced molding simulation analysis. Through iterative simulations, we precisely determined the optimal gate location and quantity. This controlled the melt flow balance, guaranteeing the final product's weld line met the client's stringent aesthetic standards .
2. Innovative Positioning for Rock-Solid Stability: To solve the challenge of positioning the embedded metal parts, we engineered a specialized in-mold positioning structure. This design firmly secured the inserts even under high injection pressure, eliminating any risk of displacement and achieving a seamless integration of plastic and metal.
3. Ingenious Mechanism for Flawless Demolding: To address the complex internal inclined undercut, we pioneered an innovative combination of an internal slider and a coordinated latch mechanism. This clever design allows the complex internal features to be demolded smoothly and effortlessly, preventing any part damage or deformation and ensuring a 100% yield rate.



   Results & Feedback

   Thanks to our meticulous attention to detail and robust technical expertise, this high-quality mold achieved a successful transfer (T2) for mass production immediately after the second trial. The exceptional quality of the product and the efficiency of our team earned high praise from the client, reaffirming our leadership position in handling complex automotive injection molding projects.
